In the relentless pursuit of aerodynamic efficiency, few aircraft have captured as much attention as the Celera Phantom 3500. Engineered by Otto Aviation, this revolutionary plane promises to slash fuel consumption over a 1,000 nautical mile journey by an astonishing 61%. At the heart of this innovation lies a concept long regarded as the “holy grail” of aeronautics: laminar flow.
What Is Laminar Flow—and Why Does It Matter?
Laminar flow refers to the smooth, orderly movement of air over a surface, dramatically reducing drag. When properly maintained, it makes an aircraft so aerodynamically “slippery” that it seemingly vanishes from a drag perspective. While the concept isn’t new, mastering it at high speeds and across complex aircraft surfaces has proven to be a decades-long challenge.
A Legacy Rooted in the 1970s
The journey toward the Phantom 3500 begins in the 1970s with Bellanca Aircraft Corporation. They pioneered a bold design using a thin fiberglass skin and a NACA 632-215 airfoil from the experimental 6-series. This airfoil was designed for natural laminar flow (NLF) at higher speeds, yet many engineers of the era remained skeptical—metal wings with rivets, even flush ones, tended to disrupt airflow and induce turbulence.
Bellanca forged ahead and developed the Skyrocket II, a sleek, composite-bodied aircraft that broke five world airspeed records—three of which still stand. Although the civil aviation market downturn prevented mass production, the aircraft’s performance didn’t go unnoticed. NASA acquired it to study laminar flow and confirmed its presence even in the slipstream, validating its design potential.
From NASA to HondaJet: Laminar Flow Moves Forward
Despite promising data, laminar flow remained mostly in the realm of research. But that began to change in the early 2000s. The HondaJet became a successful proof-of-concept for using partial laminar flow on key surfaces, demonstrating superior performance and fuel efficiency. This marked a shift: laminar flow had moved from theory to practical application.
Enter Otto Aviation and the Celera Series
Otto Aviation took the concept further with the Celera 500L, a strikingly unconventional aircraft featuring:
- A prolate spheroid fuselage for minimal drag
- High aspect ratio wings
- A tail-mounted pusher propeller
Designed for six passengers, the 500L aimed for a 59% drag reduction. Although full production never materialized, the lessons learned laid the groundwork for its successor: the Celera Phantom 3500.

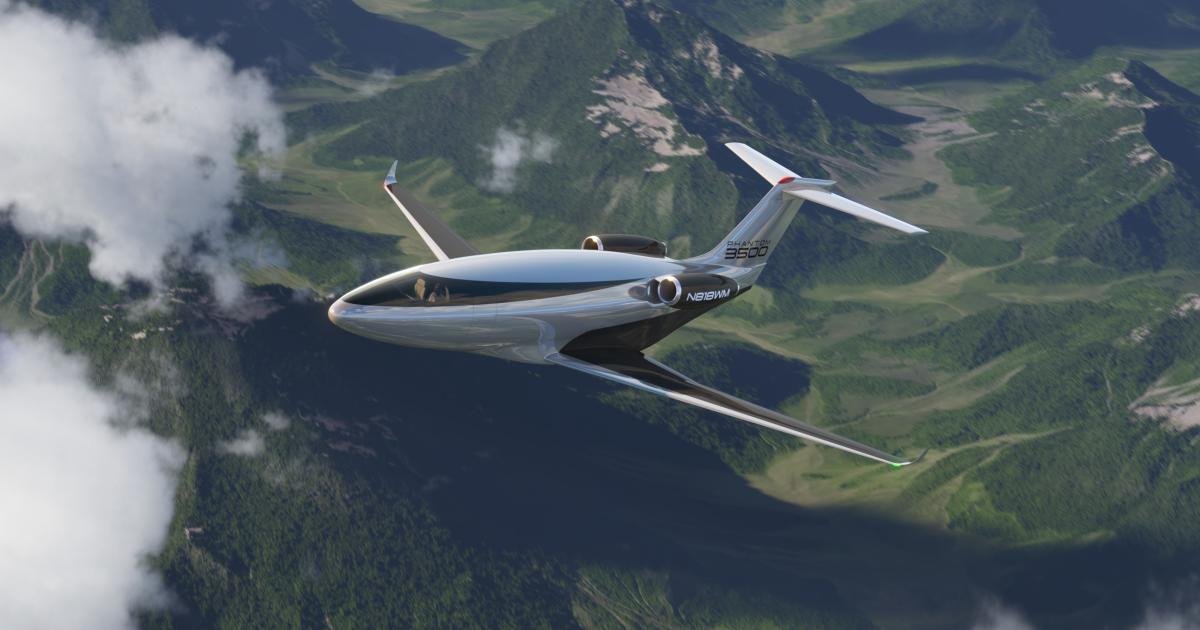

Celera Phantom 3500: Engineering Reimagined
The Phantom 3500 retains many of the 500L’s aerodynamic hallmarks but refines critical systems to unlock laminar flow’s full potential—especially at high altitudes.
1. Altitude: The Key to Laminar Success
High altitudes are essential for sustaining laminar flow. Why? It comes down to Reynolds number, which decreases with altitude due to thinner air and increased viscosity. According to NASA’s paper “Flight Research on Natural Laminar Flow”, an aircraft flying at Mach 0.8 at 40,000 ft experiences similar aerodynamic conditions to a sailplane at 10,000 ft.
Laminar flow thrives in these upper atmospheric layers, where even minor turbulence—like bug splats—is significantly reduced.
2. Powerplant Upgrade: From Pistons to Turbofans
The Celera 500L used the Red A03 internal combustion engine, which struggled with cooling and air intake at high altitudes. The Phantom 3500 replaces this with two FJ44-4A turbofan engines, known for having the lowest specific fuel consumption in their class. This switch:
- Eliminates large rear scoops that disrupted airflow
- Enables high-speed cruising at altitudes exceeding 50,000 ft
- Maintains the aircraft’s smooth, uninterrupted fuselage
3. Larger Cabin, Greater Comfort
The Phantom is not just more efficient—it’s also more spacious:
- Celera 500L Cabin Volume: 448 ft³ (12.7 m³)
- Phantom 3500 Cabin Volume: 800 ft³ (22.65 m³)
This makes the aircraft competitive with business jets like the Cessna Citation CJ3 and Beechcraft King Air 350.
4. Wings: A New Approach
Although the 500L’s high aspect ratio wings were aerodynamically superior, they didn’t suit the Phantom’s increased weight. The solution? Wider, more conventional wings with:
- A 23-degree sweep
- A leading-edge slot for vacuum-assisted airflow
- Laminar flow across 90% of the wing surface
Otto Aviation refers to this effect as “re-laminarization,” where airflow regains smoothness toward the trailing edge. The result is a lift-to-drag (L/D) ratio of 14, enabling the Phantom to operate from shorter runways with remarkable efficiency.
5. A Refined Tail
The Phantom also replaces the 500L’s airship-like empennage with a conventional T-tail, reducing surface area and improving overall aerodynamics.
A Glimpse Into the Future
With the Celera Phantom 3500, Otto Aviation is not just building another jet—they’re challenging decades of conventional aircraft design. By embracing laminar flow and optimizing every design element for high-altitude performance, the Phantom promises to reshape private aviation with:
- 61% lower fuel consumption
- High-speed cruise at 50,000+ ft
- Exceptional aerodynamic cleanliness
Set to enter service by 2030, the Celera Phantom 3500 could represent a paradigm shift in sustainable, high-performance flight. We’ll be closely following its development and the revolution it may usher in.
